Preclinical Devices

M-Series

02MRI

Simple, intuitive and accessible
MRI solution for preclinical research

MRI 이미지 1
MRI 이미지 2
MRI 이미지 3
MRI 이미지 4
MRI 이미지 5

With the M-SeriesTM platform, academic researchers and pharmaceutical companies can harness the power and insights of MRI, deriving quantified answers to their biological questions - quickly, easily and cost effectively.

Aspect Imaging is the world's leader in compact, high-performance MRI systems: Powerful results without the cost, complexity and technical burden of conventional MRI systems.

MRI 이미지 6
Characteristics

  • High performance

  • One-touch MRI

  • Infrastructure-free

  • Ready for imaging
    from day one

  • Virtually maintenance
    free

  • Noise levels
    below 70dB

Specification
Parameter M3 M5 M7 M12
Dimensions (HxWxD, mm) 1,080 x 734 x 734 1,133 X 800 x 800 1,320 x 790 x 950 1,810 x 1,450 x 1,710
Weight (Kg) 650 950 1,550 5,500
Inner Bore (HxW, mm) 50 x 130 76 x 200 220 x 90 260x180
Imaging Volume (mm3) 80 x 80 x 35 90 x 90 x 60 120 x 120 x 70 120 x 130 x 130
Gradients Strength 440 (X,Y), 540 (Z) mT/m 430 (X, Y, Z) mT/m 150 (X, Y, Z) mT/m 150 (X, Y, Z) mT/m
MRI Specification image 1
  • MRI Specification image 2
  • MRI Specification image 3
  • MRI Specification image 4
  • MRI Specification image 5

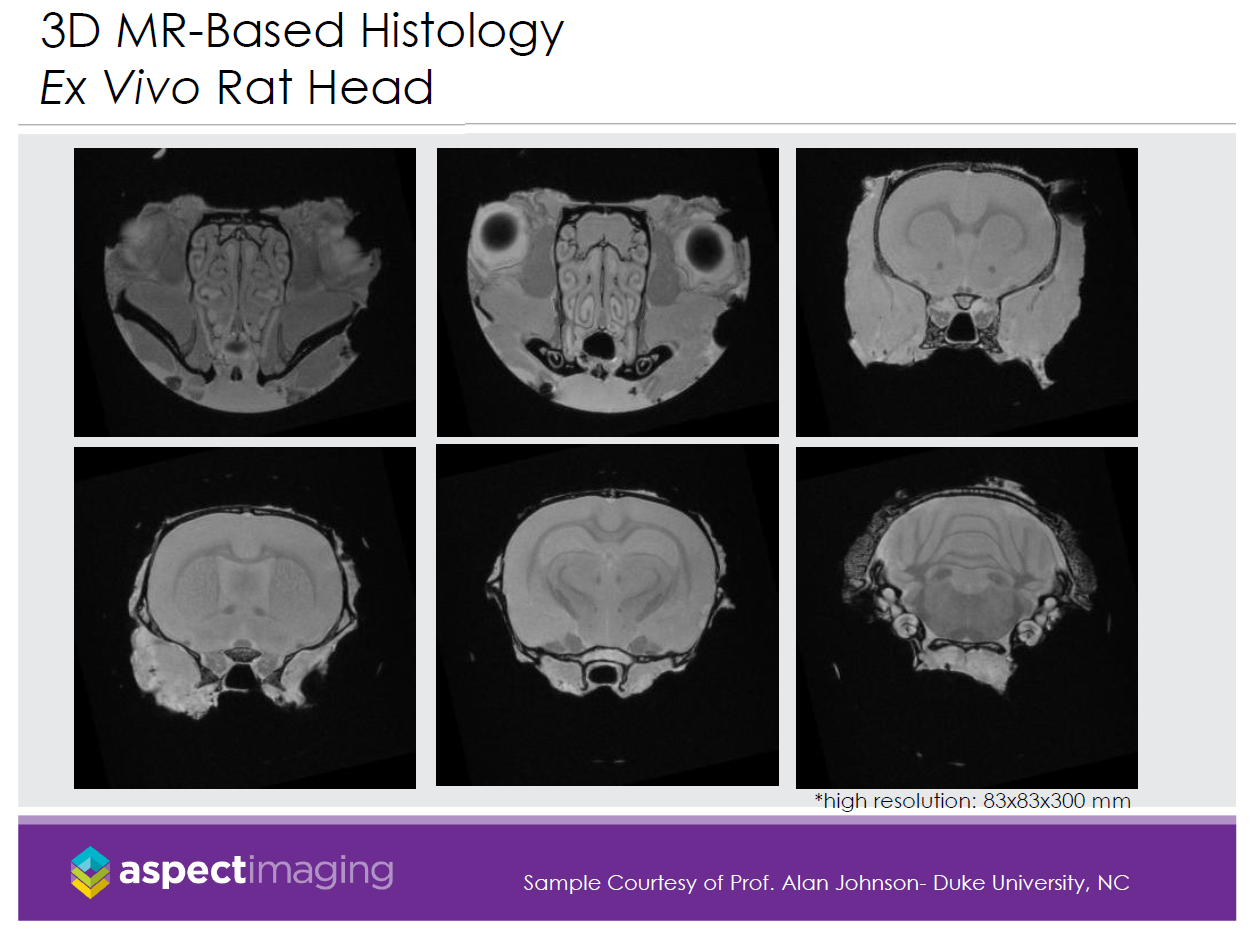

  • Ex Vivo Rat Head
    Ex Vivo Rat Head

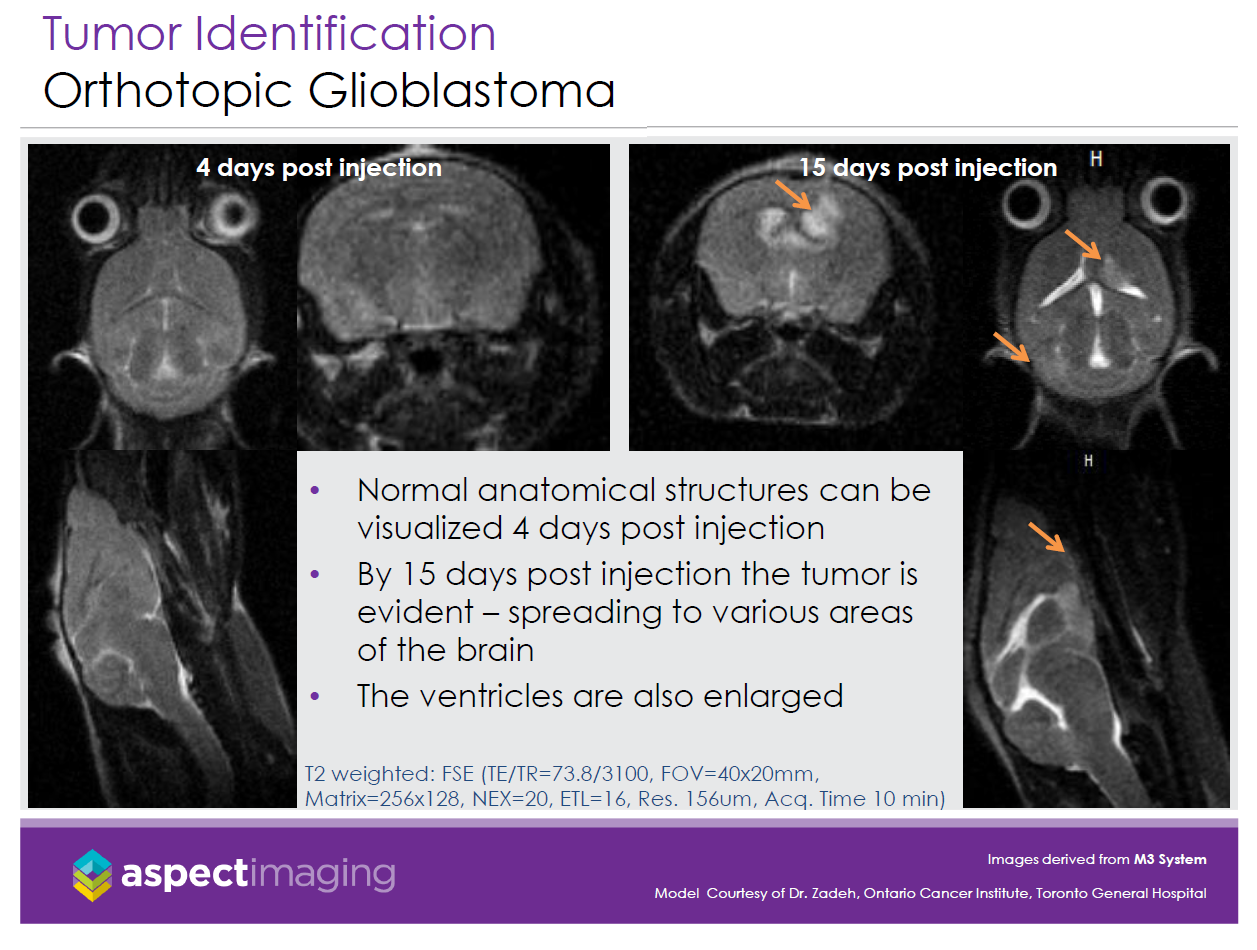

  • Orthotopic Glioblastoma
    Orthotopic Glioblastoma

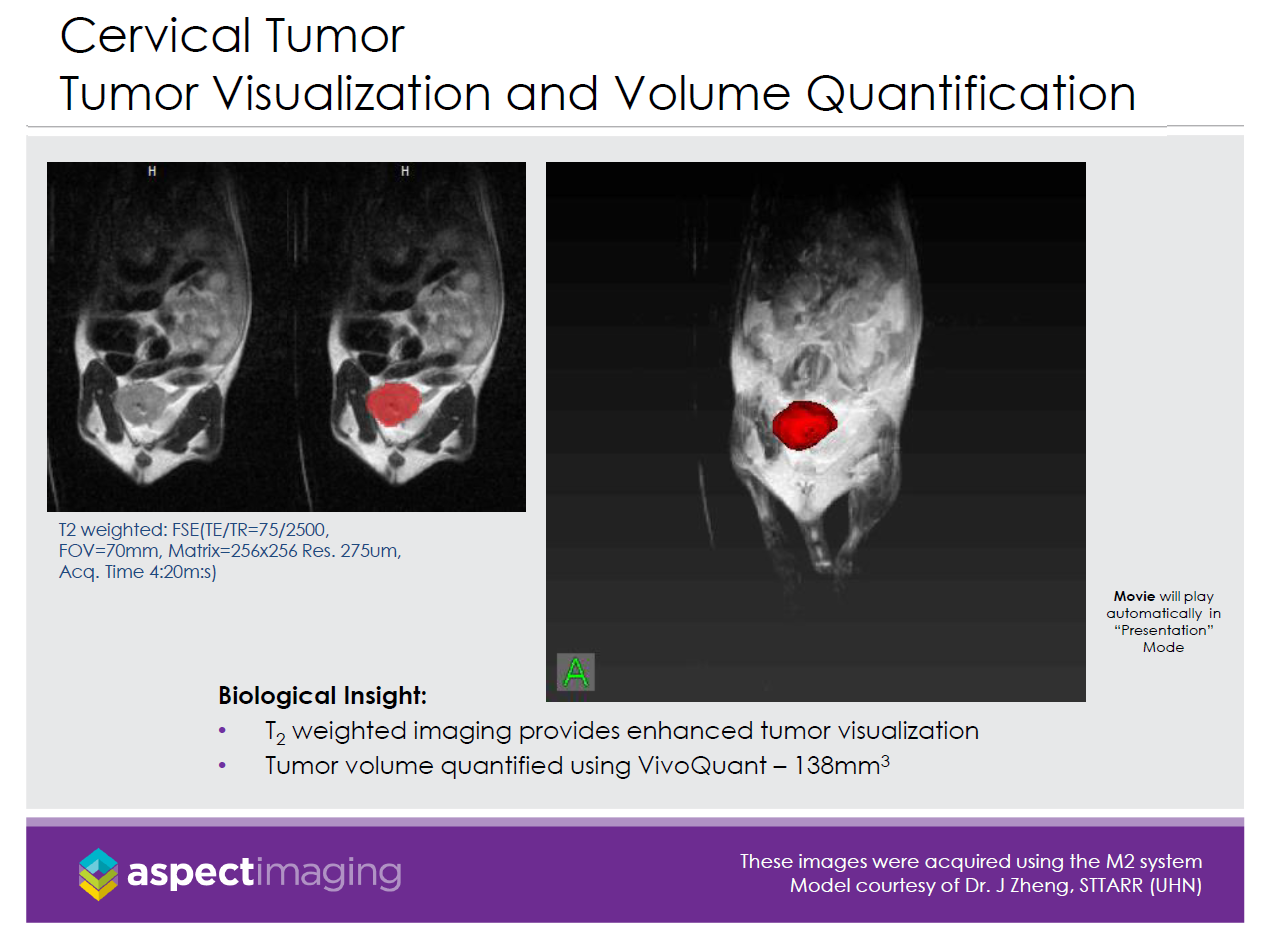

  • Tumor Visualization and Volume Quantification
    Tumor Visualization and Volume Quantification

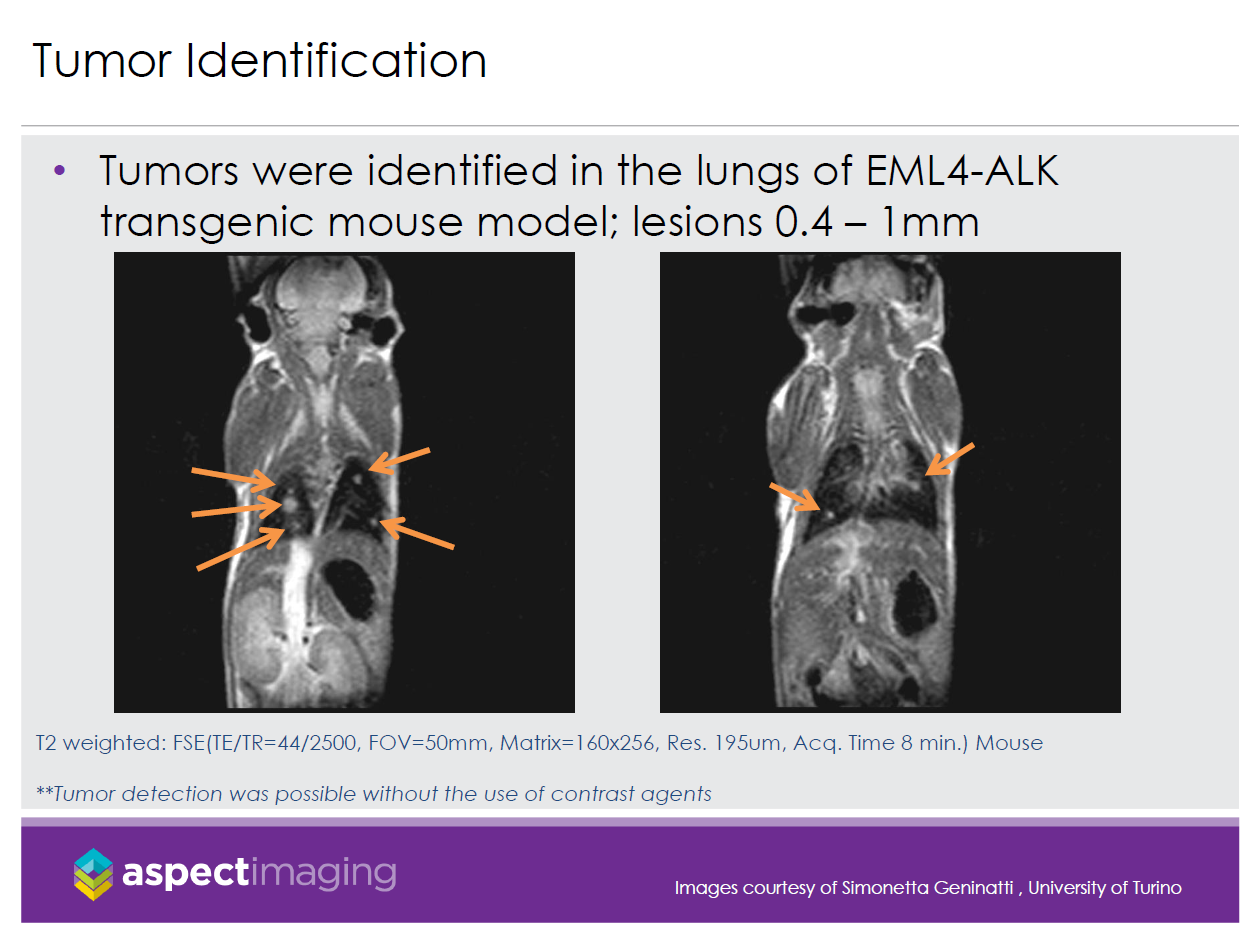

  • Tumor Identification
    Tumor Identification

  • Automatic Organ Segmentation
    Automatic Organ Segmentation

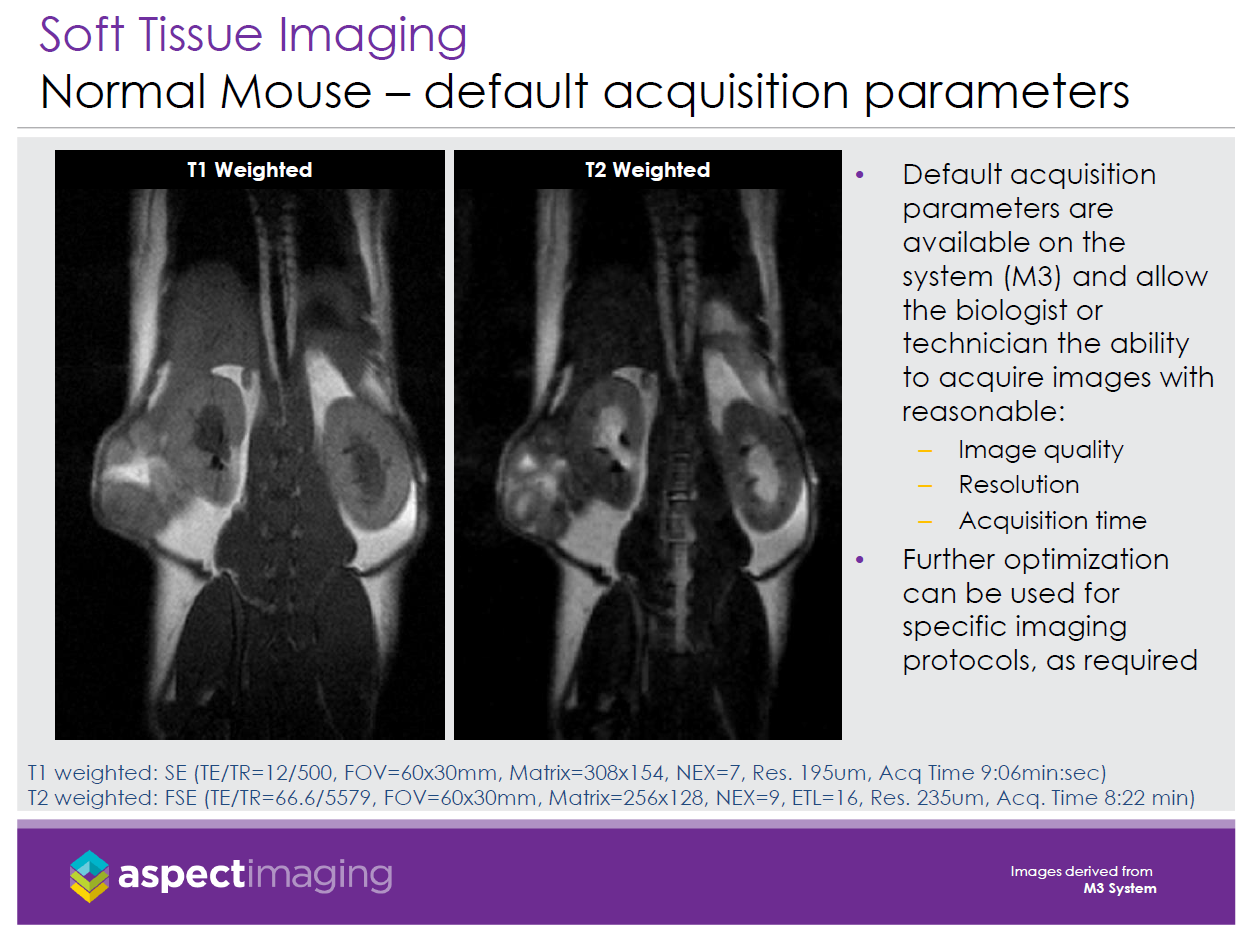

  • Normal Mouse – default acquisition parameters
    Normal Mouse – default acquisition parameters
