Preclinical Devices

ELIOS

02PET/CT

SiPM-based high-performance preclinical
PET/CT system for small animals

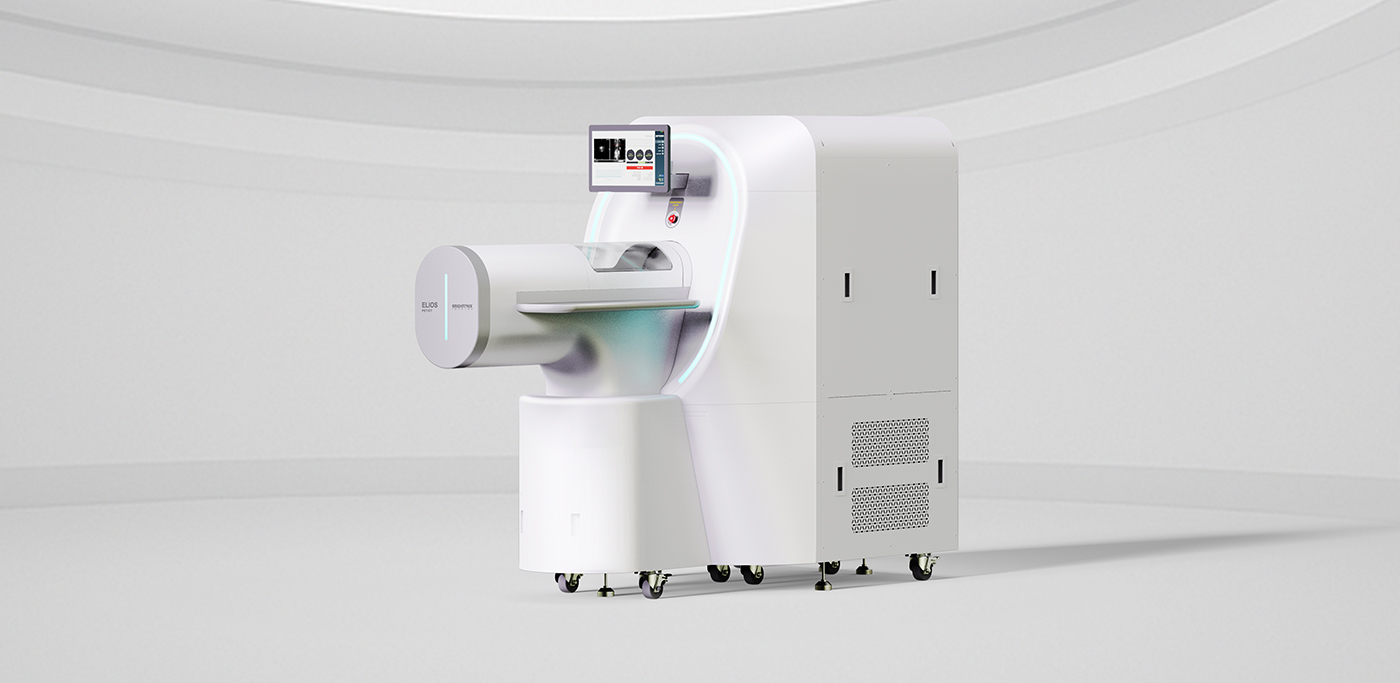

SimPET 이미지 1

SiPM-based preclinical digital PET/CT system for small animals with high resolution & sensitivity

Characteristics

  • Exceptional imaging performance

  • High image quality

  • Fully x-ray shielded
    system

  • User friendly & one-click process

  • Fast image processing

  • Compact footprint

PET features
Parameter Value
Transaxial FOV 120 mm
Axial FOV 50, 100, 150 mm/bed
Bore size 16 cm
Crystal size LBS / 1.31 x 1.31 mm
Depth of interaction Dual layer offset (6 mm , 9 mm)

* Specification and information herein are subject to change without notice.

CT features
Parameter Value
Transaxial FOV 120 mm
Detector active area 145.5 x 229.8 mm
Detector binning 1 x 1, 2 x 2, 4 x 4
Scintillator size CsI / 75 μm
Number of detectors 1944 x 3072
Speed 86 fps
X-ray source Focal spot 33 μm
X-ray peak energy Up to 80 kV
Maximum current 1,000 μA
Maximum power 130 W (continuous)
Target material Tungsten

* Specification and information herein are subject to change without notice.
