Preclinical Devices

M7-SimPET

03PET-MRI

The world’s first complete and most cost-effective permanent magnet based simultaneous
PET/MRI solution for preclinical research

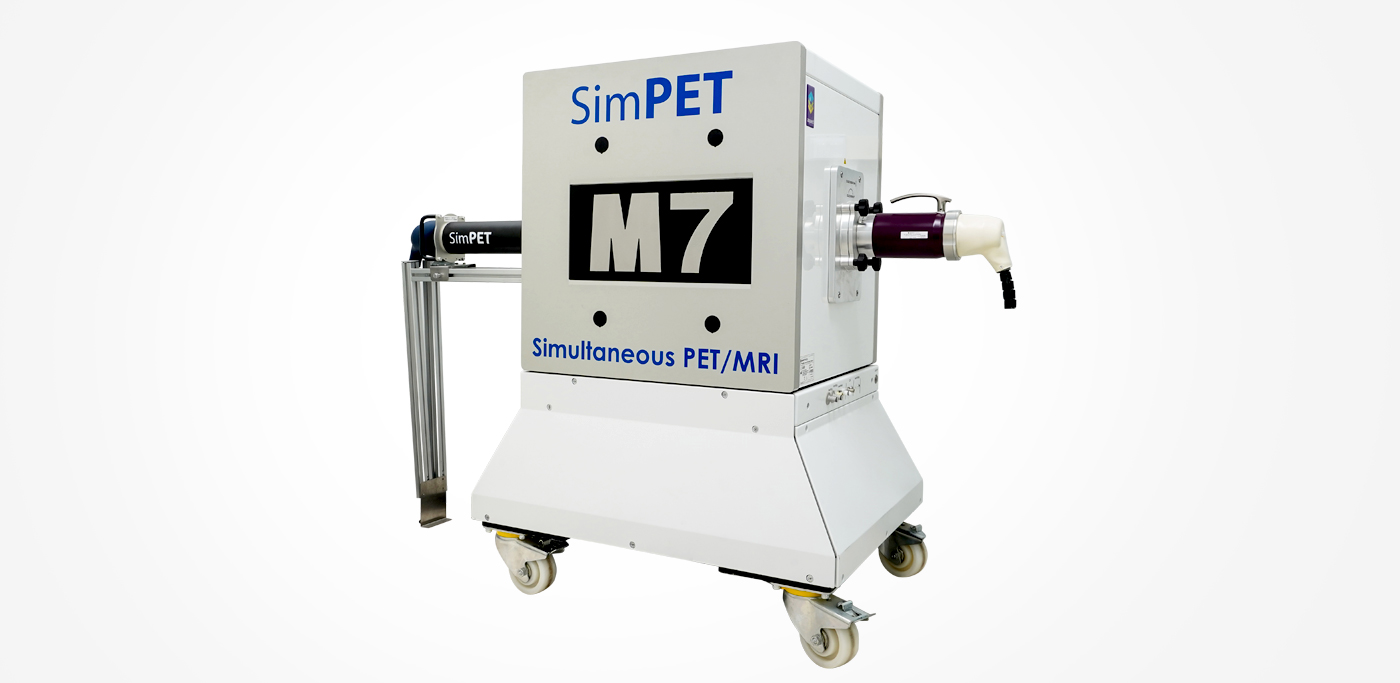

PET-MRI 이미지 1
PET-MRI 이미지 2
PET-MRI 이미지 3
Characteristics

  • High image
    quality

  • Exceptional PET
    and MRI performance

  • Simultaneous or
    standalone
    operation

  • MRI-based
    attenuation correction

  • The smallest
    footprint

  • Low maintenance
    - no cryogens

PET Specification
Parameter SimPET-S SimPET-X
Detector ring diameter (mm) 63 63
Scintillator materials LSO LSO
Crystal size (mm3) 1.2 x 1.2 x 10 1.2 x 1.2 x 10
Number of crystal rings 36 36
Number of crystals/ring 160 320
Total number of crystals 5,760 11,520
Axial FOV (mm) 55 110
Insert inner diameter (mm) 60 60
MRI Specification
Parameter M3 M5 M7
Dimensions (HxWxD, mm) 1,080 x 734 x 734 1,133 X 800 x 800 1,320 x 790 x 950
Weight (Kg) 650 950 1,550
Inner Bore (HxW, mm) 50 x 130 76 x 200 220 x 90
Imaging Volume (mm3) 80 x 80 x 35 90 x 90 x 60 120 x 120 x 70
Gradients Strength 440 (X,Y), 540 (Z) mT/m 430 (X, Y, Z) mT/m 150 (X, Y, Z) mT/m
PET/MRI Sequential Sequential Simultaneous

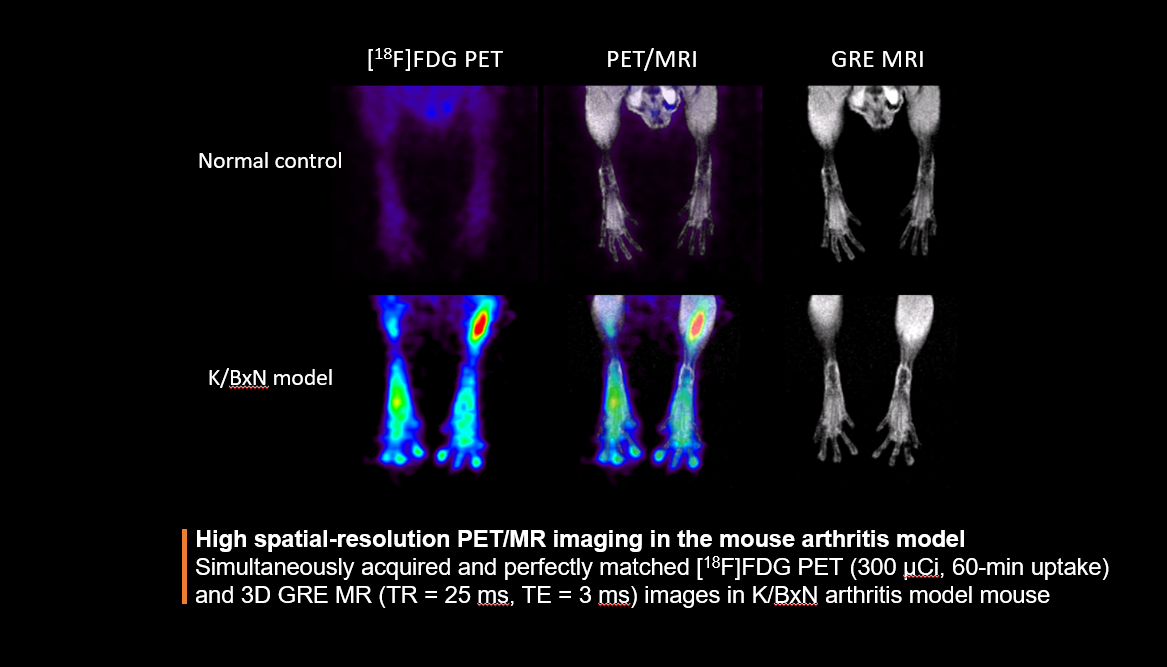

  • High spatial-resolution PET/MR imaging in the mouse arthritis model
    High spatial-resolution PET/MR imaging in the mouse arthritis model

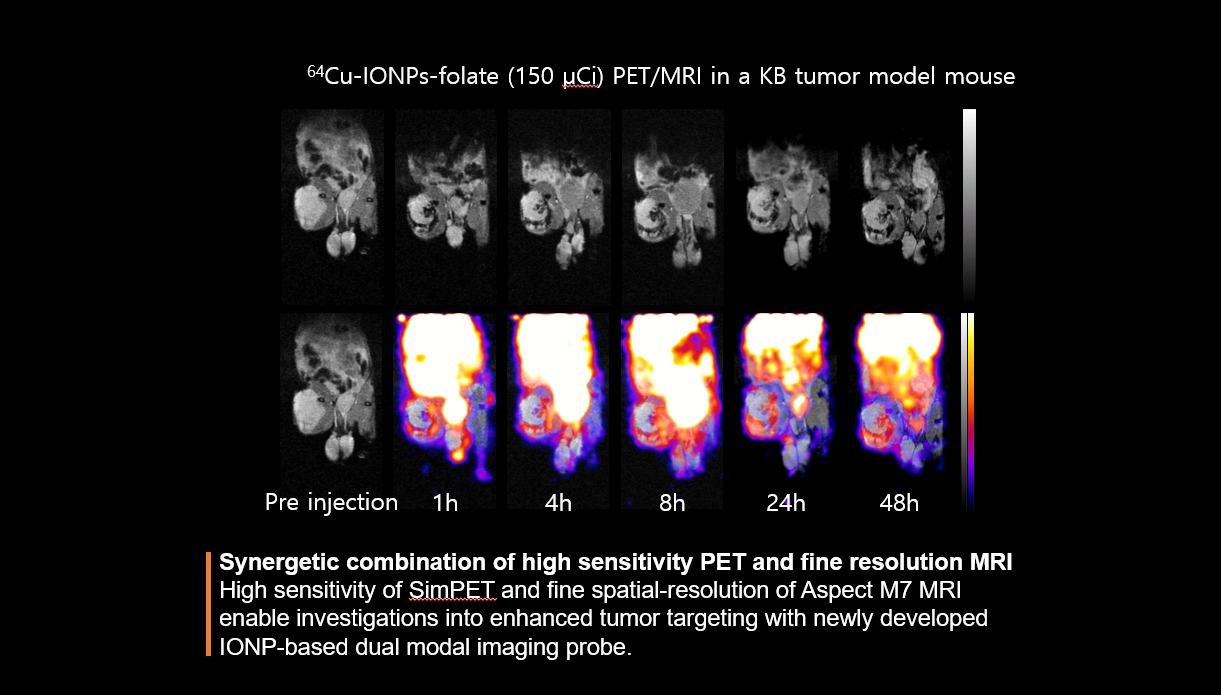

  • Synergetic combination of high sensitivity PET and fine resolution MRI
    Synergetic combination of high sensitivity PET and fine resolution MRI

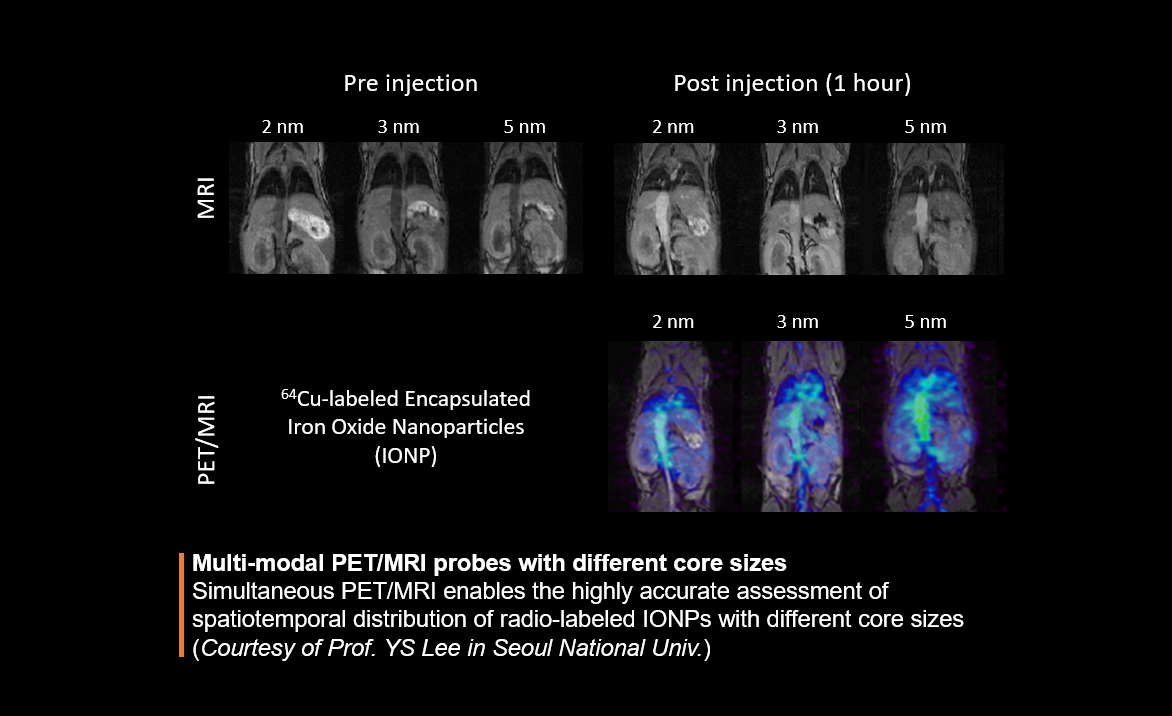

  • Multi-modal PET/MRI probes with different core sizes
    Multi-modal PET/MRI probes with different core sizes

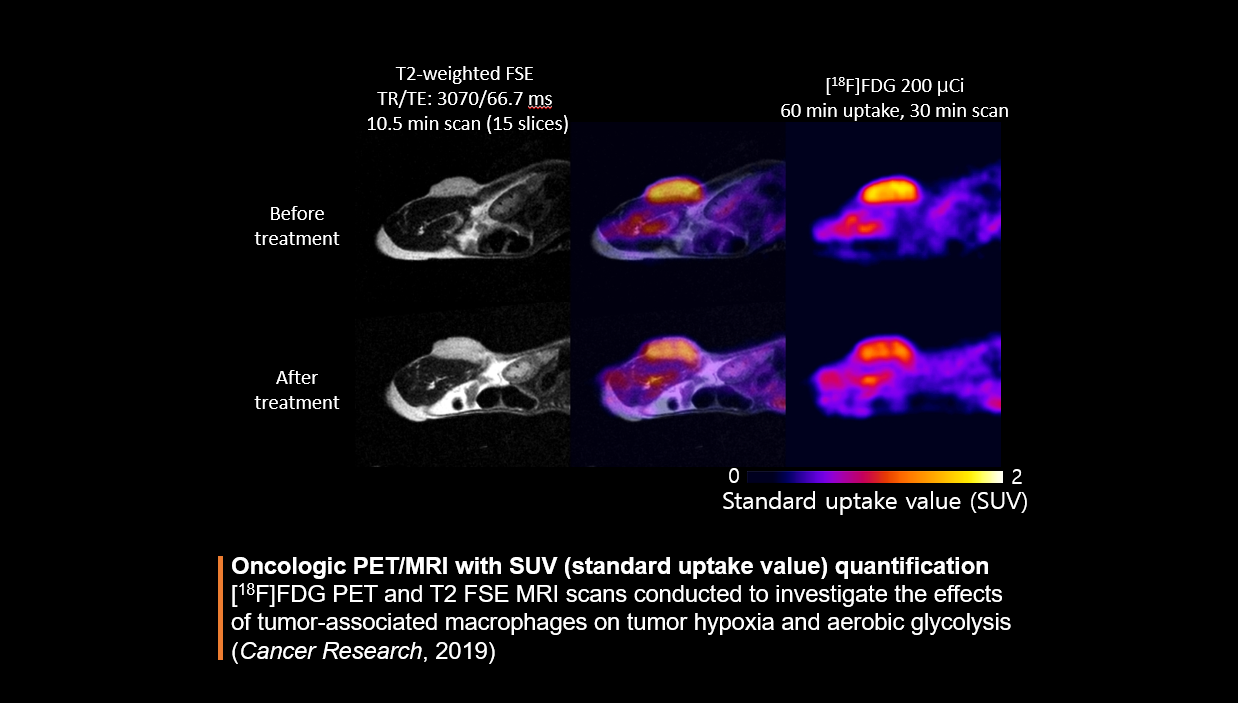

  • Oncologic PET/MRI with SUV (standard uptake value) quantification
    Oncologic PET/MRI with SUV (standard uptake value) quantification

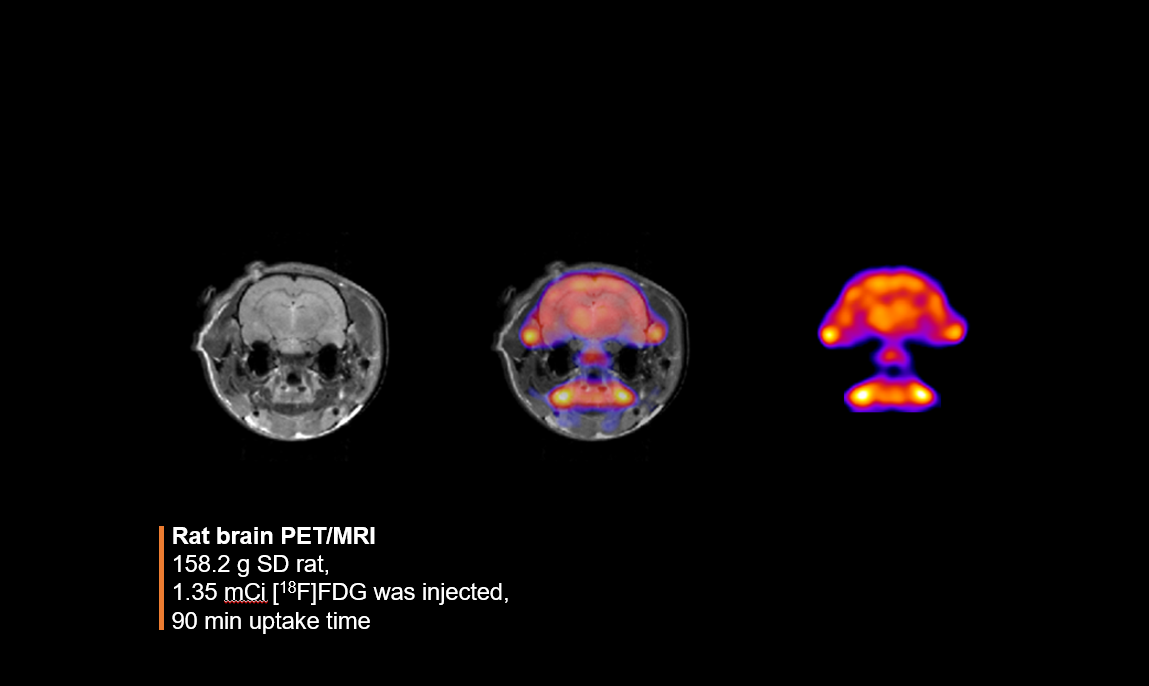

  • Rat brain PET/MRI
    Rat brain PET/MRI

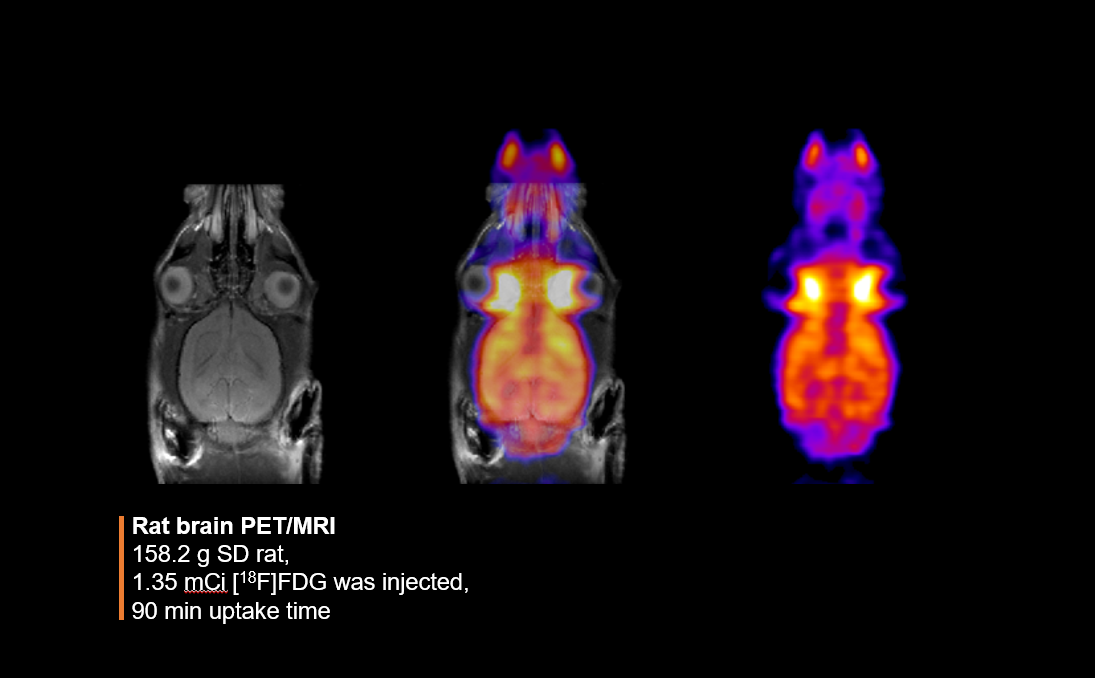

  • Rat brain PET/MRI
    Rat brain PET/MRI
